Котел на твердому паливі Duo Uni Pellet

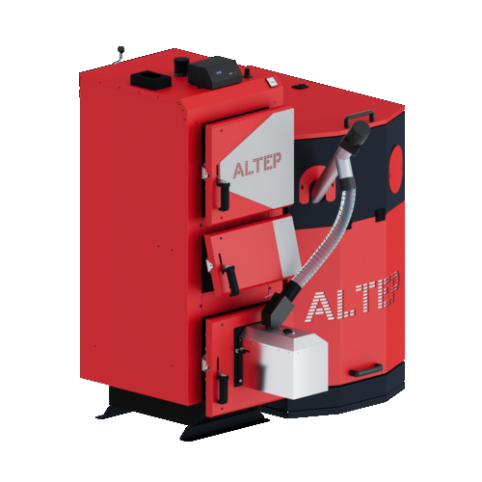

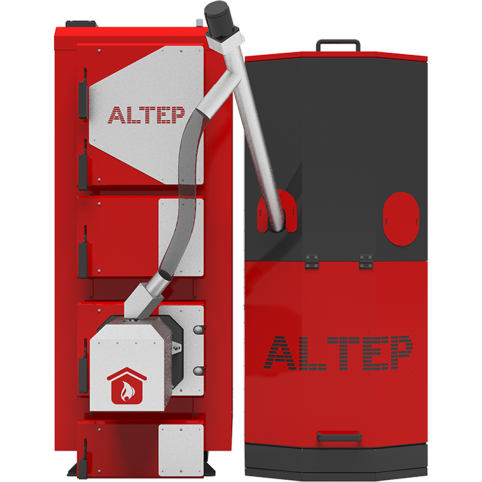

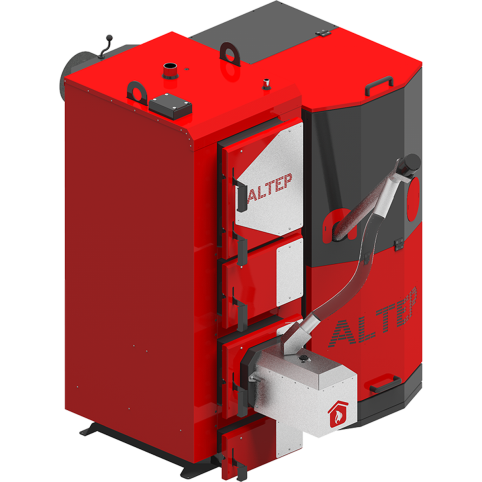

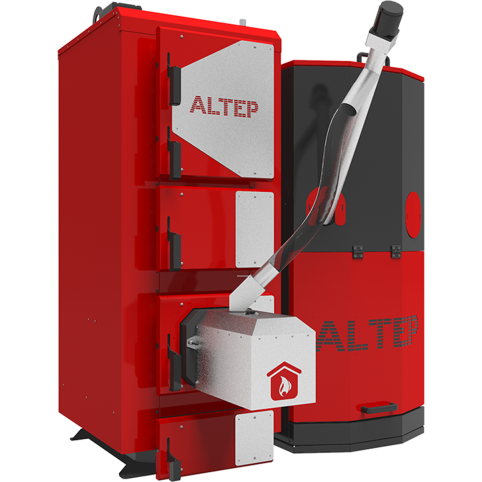

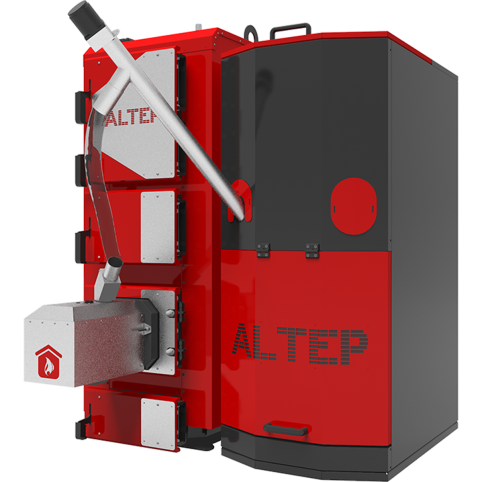

Name: Boiler DUO UNI Pellet
Brand: Altep
SKU: 7
Rating: 5 (1 reviews)

Customer Reviews: (1)

Котел на твердому паливі Duo Uni Pellet

Customer Reviews: (1)

Pellet boilers of long burning with automatic fuel supply and installed torch type burner. The design of the heat exchanger makes it easy to switch the boiler from auto-feed to manual fuel loading mode.

The boilers can be made in two versions:

DUO UNI Pellet – steel furnace chamber

DUO UNI

The boiler material is high-quality steel, 6 mm thick;
Automatic fuel supply;
Automatic fuel ignition system;
Versatility - the ability to operate the boiler in the mode of manual fuel loading and automatic feeding;
Torch burner with automatic cleaning function;
Insulated doors with double insulation - for safe operation and minimization of heat loss;

ККД

from-91

Auto-ignition

Паливо

wood pellets and agro pellets

GSM

Wi-Fi module

Self-cleaning of the burner

Environmental friendliness

Період між завантаженням палива

48-60 h

Гарантія

3 years

Двері

70 mm double insulation

Товщина металу

6 mm

Volumetric loading chamber

Потужність

15-250 kW

specifications

Dimensions

Description

Reviews (1)

Nominal power of the boiler

W80

mm.

Габаритні розміри котла Altep DUO UNI Pellet 15-40 кВт

Габаритні розміри котла Altep DUO UNI Pellet 200-250 кВт

Parameter	Dimension type	Norm for the Duo UNI Pellet Plus boiler
Nominal power of the boiler	15	21	27	33	40	50	62	75	95	120	150	200	250
The heat transfer surface area in the boiler	m2	1.9	2.3	2.6	3.1	3.6	4.5	5.0	6.0	8.2	9.3	10.2	14.1	17.4
Fuel tank capacity	dm3	300	300	300	300	300	500	500	500	700	700	1000	1000	1000
Water capacity of the boiler	l	84	92	105	120	135	170	194	220	290	328	357	560	660
Boiler weight without water	kg	320	340	360	400	420	680	720	790	1070	1160	1250	1670	2100
Necessary draft of flue gases	Pa	23-30	23-30	23-30	23-30	23-30	23-30	23-30	23-30	23-30	23-30	23-30	23-30	23-30
Furnace gas temperature	°C	100-180	100-180	100-180	100-180	100-180	100-180	100-180	100-180	100-180	100-180	100-180	100-180	100-180
Recommended minimum water temperature	°C	58	58	58	58	58	58	58	58	58	58	58	58	58
Maximum water temperature	°C	85	85	85	85	85	85	85	85	85	85	85	85	85
Nominal working water pressure	MPa	0.15	0.15	0.15	0.15	0.15	0.20	0.20	0.20	0.20	0.20	0.20	0.20	0.20
Electricity consumption (230 V, 50 Hz), no more
during operation	W	80	80	80	80	80	80	80	100	100	100	500	500
when ignited
800	800	800	800	800	800	800	800	800	800	800	1200	1200
External dimensions of the hog	mm	159	159	178	178	219	248	248	248	298	298	298	348	398
Diameter of network water pipes (DN)	mm	50	50	50	50	50	50	50	65(FL)	65(FL)	80(FL)	80(FL)	100(FL)	100(FL)
Recommended chimney parameters
sectional area	cm2	201	201	248	248	377	452	452	452	660	660	660	908	1194
internal diameter
160	160	180	180	220	250	250	250	300	300	300	350	400
height (minimum allowed)	m	5	5	5	5	6	6	6	7	7	7	8	9	10
Diameter of the fitting for the safety valve (DN)	Mm	15	15	15	15	15	20	20	20	25	25	50(FL)	50(FL)	50(FL)

Параметр	Од. виміру	Котел Duo UNI Pellet/Plus
Габаритні розміри котла	кВт	15	21	27	33	40	50	62	75	95	120	150	200	250
B	мм	1300	1300	1350	1350	1350	1400	1400	1400	1550	1600	1900	2100	2300
B1	мм	510	510	560	560	560	670	670	670	820	860	860	1070	1270
H	мм	1490	1490	1540	1590	1590	1820	1870	1910	2110	2130	2130	2350	2350
H1	мм	1425	1425	1475	1525	1525	1720	1770	1800	1990	2010	2010	2230	2230
H2	мм	1270	1270	1310	1360	1340	1523	1573	1598	1763	1785	1785	1992	1967
L	мм	1220	1270	1270	1340	1420	1610	1620	1920	2140	2380	2480	2740	3000
L1	мм	680	730	730	800	880	910	960	1060	1140	1290	1390	1530	1700
D	мм	159	159	178	178	219	248	248	248	298	298	298	348	398

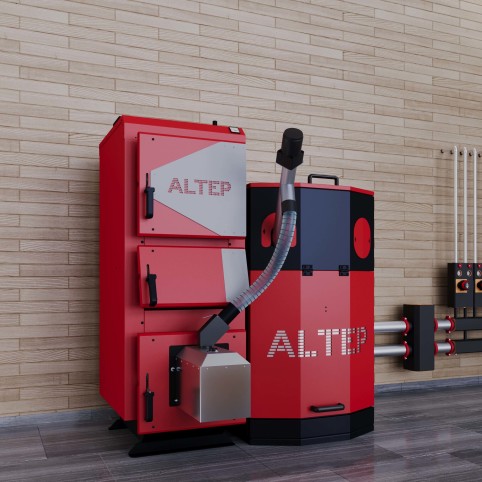

Solid fuel cats of the DUO UNI Pellet type are long-burning pellet boilers. They are designed for heating residential buildings and industrial buildings in automatic fuel supply mode. This mode includes: ignition and fuel supply, maintenance of combustion, extinguishing and cleaning of the burner. Power range: 15-250 kW.

In the basic configuration, the boiler can be operated in the automatic fuel supply mode. To switch the boiler to the manual loading mode, it is necessary to install a cast-iron grate (15-40 kW), a fan and a control unit. The multi-channel air supply system ensures long-lasting and even combustion of fuel from top to bottom. This advantage allows the use of different types of fuel, different sizes and fractions.

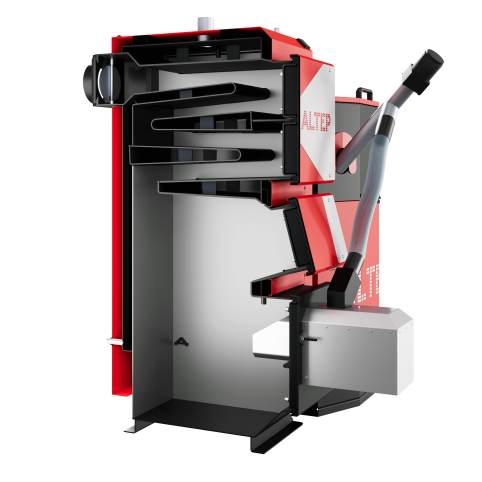

The boiler has a significant convection surface area with compact dimensions, which provides a high level of efficiency and significantly saves fuel consumption.

The autonomy of the boiler is ensured by sensors that monitor the combustion process in the boiler and are also responsible for the safety of the equipment. Modern technologies allow you to control the combustion process of the boiler remotely – using the GSM module and Wi-Fi.

1 reviews on Котел на твердому паливі Duo Uni Pellet

Иван Белоножко
02.03.2020

Купил домой данный котел мощностью 21кВт. Есть газовый котел, пеллетный брал для экономии. Все красиво и выглядит добротно. Доставка была бесплатной и быстрой. Горелка от ТМ Альтеп, что б был один сервис. Единственное, запуск пришлось ждать 7 дней, из-за очередей. Стоимость первого запуска в Умани стоила 4500грн.

02.03.2020

Благодарим за Ваш отзыв.
