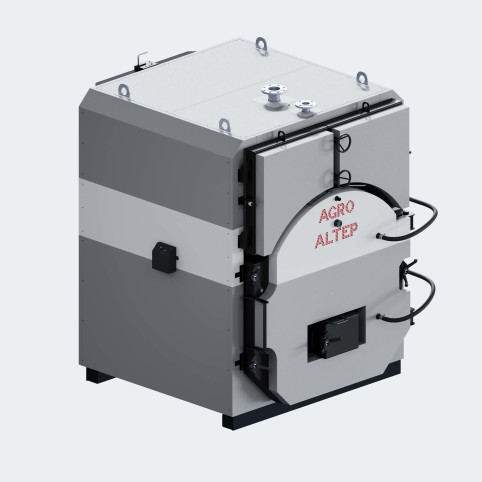

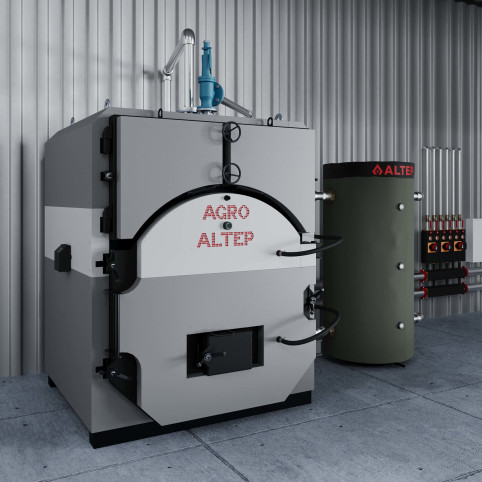

AGRO - is a fire-tube industrial solid fuel boiler with manual fuel loading, which can be installed in both stationary and transportable boiler houses with a closed heating system.
| Parameter | Unit | Norm for boiler 150-300 kW | Norm for boiler 200-600 kW | Power range | kW.150-300 | 200-600 | Fuel | – | Straw, moisture content not more than 20 % | Straw, moisture content not exceeding 20 % | Heat exchanger area | m²22 | 58.5 | Efficiency | .% | 86 | 86 |
| Furnace dimensions | Depth | mm1440 | 3165 |
| diameter | mm | 1300 | 1600 |
| volume | dm³ | 1900 | 5060 |
| Water capacity of the boiler | l | .3100 | 5780 |
| Boiler weight without water | kg | 2880 | 6800 |
| Needed flue gas draft | Pa | .60-80 | 60-80 | Furnace gas temperature at the boiler outlet | °C100-180 | 100-180 | Recommended minimum water temperature | °C58 | 58 |
| Maximum water temperature | °C | 85 | 85 |
| Nominal (maximum operating) water pressure | MPa | .0.30 | 0.30 | Test water pressure, max | MPa | .0.50 | 0.50 |
| Recommended chimney parameters | Sectional area | cm² | 706 | 1970 |
| Inner diameter | mm | 300 | 500 |
| height (minimum allowed) | m | 10 | 16 |
| Diameter of the nozzles for the safety valve (DN) | mm | 50 | 50 |
| Параметр | Од.виміру | Норма для котлів 150-300 кВт | Норма для котлів 200-600 кВт |
| Габаритні розміри котла | кВт | 150-300 | 200-600 |
| B | мм | 2150 | 2600 |
| B1 | мм | 1840 | 2310 |
| H | мм | 2420 | 2810 |
| H1 | мм | 2320 | 2660 |
| H2 | мм | 2022 | 2265 |
| H3 | мм | 380 | 465 |
| L | мм | 2450 | 4230 |
| L1 | мм | 1850 | 3575 |
| L2 | мм | 340 | 385 |

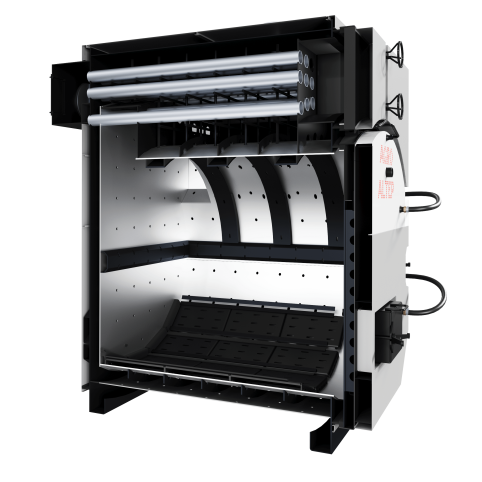

The boiler type AGRO has a large firebox designed to load one or more small straw packages and burn them.
The temperature is regulated by a microprocessor in the form of an automation unit. It is able to stabilize the water temperature by smoothly reducing and increasing the number of revolutions of the discharge fan, which blows the boiler. The convection part of the boiler consists of two rows of heat pipes.
